NSZH-6745T1-L
Attribute:

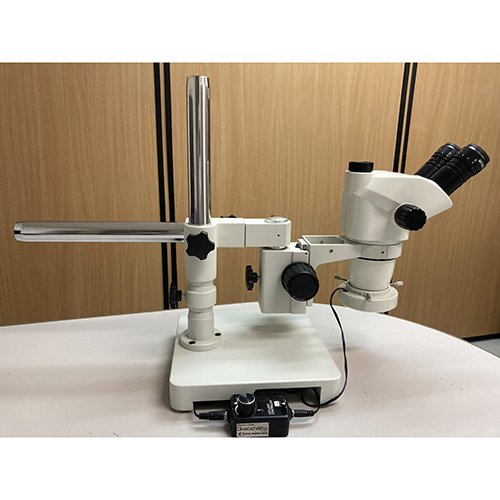

Stereo Microscope (Universal Stand) NSZH-6745T-L
Share
Categories : Products , Stereo Microscope (กล้องจุลทรรศน์แบบสเตอริโอ) ,
Share
● Magnification : 6.7x to 45x (Zoom)
● Working distance 105mm (75mm with LED light)
● 2 optical path type (Observing by naked eye is available during mounting camera (option) on)
● save space
● Microscope angle can moveable (320mm)
● Include 56 LED lights.
Specification
| Total magnification | 7x～45x |
| Objective lens | 0.7X－4.5X |
| Eyepieces | 10x |
| F.N. | 20 |
| Microscope Type | Trinocular |
| Working distance | 105mm 75 mm （when Led Ring Light is attached） |
| Stand | Arm length 320mm |
| Stand dimension | W230×D230×H310mm 13kg |
| Accessory | Cover |
Feature
1. Zoom lens 6.7X～45X
【Adjusting】
● Diopter adjustment of for the right and left eye both.
● Interpupillary adjustment
2. Arm can be stretched (320mm) for observing large objects
3. 56 LED Ring Light
● Long life lighting LED with dimming
Option Auxiliary Lens
YM0745-0.5
0.5x Auxiliary Lens
● 3.5x-22.5x
● W.D. 156mm
YM0745-1.5
1.5x Auxiliary Lens
● 10.5x-67.5x
● W.D. 45mm
YM0745-2.0
2.0x Auxiliary Lens
● 14x-90x
● W.D.32mm
Contact to inquire about the product.
Tel: 02-664-2246
Business hour: 08:30 - 17:30
Closed on weekends & public holidays
