STWS-P1805

Attribute:

φ1.8mm super small diameter endoscope

Share

Share

Super small diameter endoscope!

●φ1.8mm super small diameter cable
●160000 pixels even with a super small diameter
●The cable can be changed according to the application.

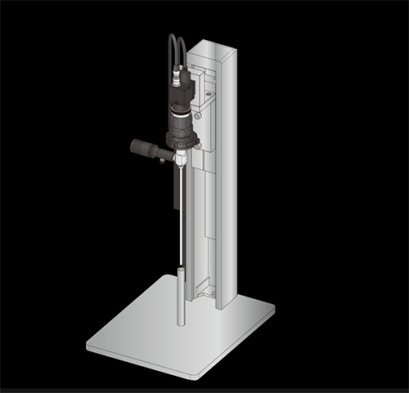

*Demonstration machine is only 0.5m.

Industrial endoscope body specifications

Monitor6" FHD monitor
Waterproof standardIP54 standard
Display Resolution1920 X 1080
SaveMicro SD card (supports up to 32GB)
*When using a Micro SD card (4GB),
Capable of storing 31000 still images Jpeg and 135 minutes of video MPEG4
External outputHDMI, USB Type-C
LanguageJapanese, English,  Chinese
Power SupplyAC adapter / rechargeable lithium battery
FunctionDimming function/Zoom/Mirror reversal
Drive TimeAbout 8 hours (depending on brightness)
Still image
Recording Format
Jpeg(640 X 480)
Video
Recording Format
AVI (640×480)
Operating Environment Temperature/
Humidity
0 to 45°C (no condensation)
Storage Environment Temperature/
Humidity
0 to 60°C (no condensation)
Size/Weight175(W) X 375(H) X 78(D)mm
/1327g


Cable specification

Cable Typeφ1.8mm super small diameter
Cable Length0.5m - 1m
Cable FeaturesEquivalent to IP67 dust and water resistance
*Oil resistant (engine oil, automobile brake oil,
unleaded gasoline,Diesel oil, transmission oil, kerosene,
cleaning fluid (glass),Edible vegetable oil, aviation fuel oil,
hydraulic oil, turbine oil, antifreeze agent,ethanol)/
Viewing angle 120°/focal length 3mm to 70mm/
CMOS sensor
LightingWhite LED fiber illumination 8-step dimming
AccessoriesEndoscope body, cable, micro SD card, card reader, tripod,
USB cable, rechargeable battery, charging cable, AC adapter, charger,
Shoulder strap, carrying case


Main features

Tip diameter φ1.8mm

Super small diameter cable


High-definition monitor
